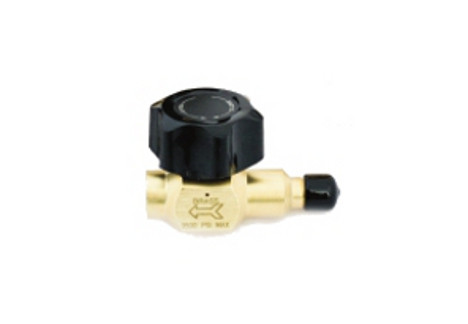

Vent/Outlet Isolation Diaphragm Packless Valve Brass Multi-turn High Purity 1/4" NPT Male Long X 1/4" NPT Female Model 8310L-P4MF

Hover over image to zoom

  • Image 1
USD $98.00

 Product Description



DESCRIPTION

Note: The Vent Valve will be mounted in the 3 O'clock position. The Outlet  Isolation Valve will be mounted in the 9 O'clock position. Add a note saying which valve you are buying the Vent or Outlet Valve or both because of positions to the Order Instructions/Comments Section Box at Check out time. The multiple metal diaphragm design and Kel-F® seat are the key elements to the high purity success of these valves. They are available in a variety of styles and fitting configurations to meet virtually any application.


FEATURES
• Metal diaphragm packless construction for diffusion resistant operation.
• Capable of passing a helium leak-rate test to 10-10cc/sec
• Available in multiple turn and 90° lever operated designs.


APPLICATIONS

The Series 8300 valves are recommended whenever the diffusion of atmospheric gases and moisture into a gas system is undesirable. They are a must in all ultra high purity gas transfer systems, particularly those used for gas chromatography carrier gases, samples, and calibration standards.



MATERIALS OF CONSTRUCTION

  Series 8310

Body Brass
Seat Kel-F®
Diaphragm Stainless Steel

SPECIFICATIONS
Operating pressure: brass - 3000 psig

Operating temperature range: -65° to 150°F
Flow coefficient (Cv): 0.13



HOW TO ORDER

    Connections
Model* Actuation Inlet Outlet

8310L-P4MF Multi-turn 1/4" NPT male long 1/4" NPT female

TYPICAL LEAD-TIME 1-5 DAYS


SKU:
VOSDPV8310L-P4MF
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
