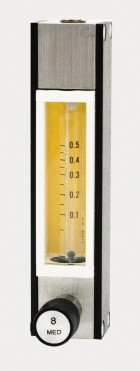

Stainless Steel AD Flowmeter Standard Valve Series 7965 65mm Flow Rate 10-100 sccm Glass Float Model 7965S-J15ST

Hover over image to zoom

  • Image 1
Competitor's Price: USD $468.00
USD $385.00 (You save USD $83.00)

 Product Description

All calibrations are for air @ 0 psig outlet and 70°F.

The Series 7965 flowmeters use 65mm flow tubes with a single float. They are calibrated to read directly in SCCM, SLPM or SCFH of air. Correction factors are available for a number of common gases. The Series 7965 flowmeters are available in chrome plated brass or stainless steel.

SPECIFICATIONS

Maximum Inlet Pressure: 200 psig
Temperature Range: -20° to +250°F
Valve: Standard or high accuracy needle valve
Dimensions: 1 1/4"W x 5 1/2"H x 2 3/4"D
Accuracy: ±5% full scale
Repeatability: 0.25% of scale reading
Inlet and Outlet: 1/4" NPT female



Add the inlet and outlet connections of your choice to the Order Instructions/Comments Section Box at Check out time.

• 1/4" hose barbs inlet and outlet - add suffix “4HB”
• 1/4" compression tube fittings inlet and outlet - add suffix “T4FF”
• 1/8” compression fitting inlet and outlet - add suffix “T2FF”

Bench stand - Model FMBS7920B



Model Material

7965SJ15ST* 316 Stainless Steel with standard valve



65MM TUBE CUBE SELECTION


Tube Number Float Material Flow Range*+

J15ST glass 10-100 sccm



SKU:
FM7965SJ15ST
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
