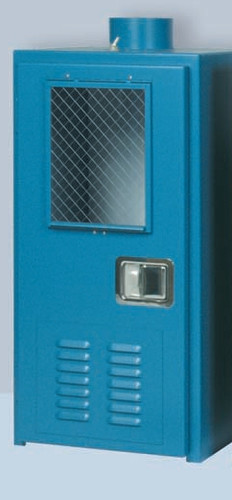

Gas Safety Storage Cabinet for 1 Lecture Bottle Cylinder 18"W X 18"D X 39"H Model 3100 Custom

Hover over image to zoom

  • Image 1
  • Image 2
Competitor's Price: USD $2,350.00
USD $1,650.00 (You save USD $700.00)

 Product Description

Note: Custom cabinet sizes and colors are available for quote. Call 215-230-3633

Gas safety storage cabinets are designed for Lecture Bottle and Small Cylinders to provide local exhaust gas control to enhance the safety of storing or using hazardous gases. The use of gas cabinets provides a convenient way to achieve separation of gases by their classifications to satisfy both national and local fire and building codes.
      When connected to a suitable exhaust system, air is drawn though the cabinet ensuring that any gas leakage is carried away and does not accumulate in the storage or work area. The cabinets can be fitted with manifolds or other gas controls so that both the cylinder and the control system are enclosed. When operators access the controls through the access window and a proper exhaust system is in operation, the cabinet has the capacity to allow 150-200 linear feet per minute of air to pass across the open window face to ensure that workers are not exposed.
• Keyed door latch(es)
• Keyed window latch(es)
• Adjustable small cylinder shelf

• All welded construction using 11 gauge steel, epoxy painted. Texture finish outside, smooth finish on inside of cabinet.
• Exhaust vent located on top of cabinet is 6" diameter x 3" high.
• 165° F. sprinkler head with bee's wax coating located in cabinet top.
• 1 Cylinder bracket accommodate cylinders. The bracket can move vertically and horizontally for precise pigtail alignment.
• Self-latching and closing window(s) with 1/4" thick wire glass.
• Self-latching and closing door(s) with bottom louvers and flush mounted stainless steel paddle latch(es). Optional keyed latches available.
• All stainless steel fasteners.
• Meets or exceeds the Uniform Fire Code.

 *Overall cabinet height including exhaust vent is 39".



  • IF NEEDED SOONER CALL 215-230-3633.


Model Cylinder
Weight Exhaust Flow
Required (SCFM)


3100 One 18"W x 18"D x 39"H   16"W x 34"H 140 lbs.

- - -







Calculated at checkout
Minimum Purchase:
1 unit(s)
