Four Regulators Vertical Brass Point Of Use Panel Model 2231-V-???-???-???-???

Hover over image to zoom

  • Image 1
Competitor's Price: USD $3,452.00
USD $2,200.00 (You save USD $1,252.00)

 Product Description



Point of use panels provide a convenient organized method to deliver gas to your laboratory instruments or systems whether from a single source or multiple sources while providing individual pressure control for each application.

FEATURES

• High purity brass line regulators.
• Individual inlets and outlets for each regulator.
• Vertical configuration.
• HDPE panel.

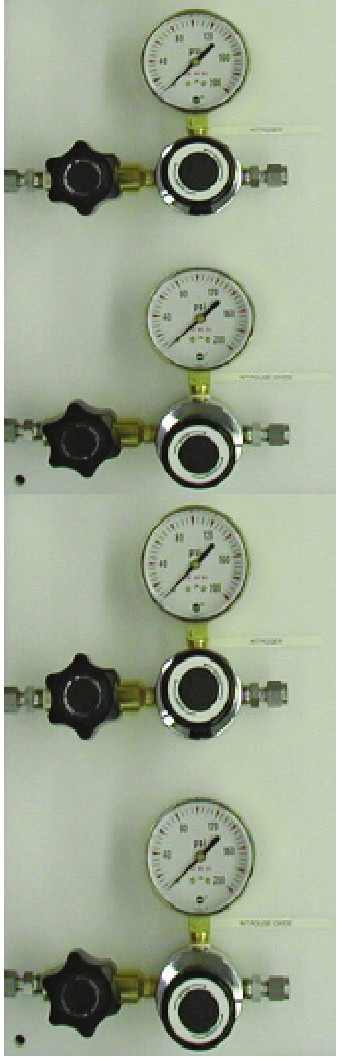

• Inlet 3 o'clock outlet 9 o'clock connections as shown in the picture. 1/4" stainless steel compression fittings.

Choice of Regulators are 0-25 psig, 0-50 psig, 0-100 psig and 0-150 psig.

SPECIFICATIONS
Max. Inlet Pressure: 3000 psig
Operating Temp. Range: -40° to +185°F.
Flow Coefficient(C v): 0.08 standard
Inlet 3 o'clock outlet 9 o'clock connections as shown in the picture. 1/4" stainless steel compression fittings.

MATERIALS OF CONSTRUCTION
Body: brass
Poppet: stainless steel
Nozzle: Assembly: brass
Diaphragm: stainless steel
Seat: Kel-F®
Diaphragm Seal: Teflon®
Inlet Filter: stainless steel
Bonnet: nickel plated aluminum
Gauge: brass
Knob: aluminum - black anodized





Model
Number+
Del. Press. Range
      psig
Del. Press. Gauge
     psig



3101L-25 5-25 0-60
3101L-50 5-50 0-100
3101L-100 10-100 0-200
3101L-150 10-150 0-200



HOW TO ORDER

Note: Select your regulators orientation and add it to the Order Instructions/Comments Section Box at Check out time. Example: 2231-V-25-25-50-100 describes a brass four regulator panel in the vertical orientation with the first regulator on the top having a 0-25 psig delivery pressure range followed in order by three others: 0-25 psig, 0-50 psig, and 0-100 psig.

TYPICAL LEAD-TIME 7-14 DAYS






SKU:
POU2231-V-???-???-???-???
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
