Deep Cross Purge Valve System Stainless Steel 90° lever Valve CGA x CGA Model 4823-CGA

Hover over image to zoom

  • Image 1
USD $983.00

 Product Description

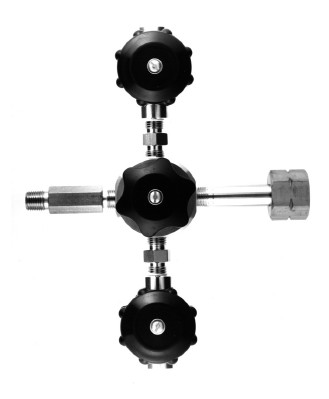

Note: Picture shown is of a Purge assembly with Multi-turn valves and a 1/4" NPT male nipple on the outlet. The part you are ordering has 90° lever valves and CGA connections on the inlet and outlet.

DESCRIPTION

The installation of a purge assembly on the inlet of your pressure regulator, pigtail inlet, or gas control system is highly recommended anytime a toxic, corrosive, flammable, or ultra high purity gas is to be used in the system. Purge assemblies perform the following multiple functions in your gas system during cylinder change-overs:

  • Eliminate the release of toxic, corrosive, or flammable gases into the workplace.
  • Maintain the integrity of an ultra high purity system.
  • Protect equipment in corrosive gas service from exposure to moisture, thus preventing destructive corrosion.
  • DEEP PURGE VALVE SYSTEM
    Series 4800

    DESCRIPTION

    The Series 4800 deep purge valve system provides the ultimate in purging capability in a compact design with a very small internal volume. These units can be used in a wide variety of applications where contamination must be avoided during cylinder changeovers.

    The deep purge valve system is an ideal accessory installed between the cylinder and the regulator of ultra high purity carrier lines for gas chromatography systems that cannot tolerate even a minimum amount of oxygen and moisture that can enter the system during cylinder changeovers.

    The deep purge valve system can be used with gas mixtures containing reactive components to ensure that no moisture enters the sampling system to cause deterioration of the reactive components that can lead to concentration inaccuracies. Use of the 4820 also provides protection from the release of toxic gases into the atmosphere during cylinder changeovers. Material of Construction for all models are stainless steel.

    HOW TO ORDER Note: Add the CGA connections of your choice to the Order Instructions/Comments Section Box at Check out time. CGA Connections will be installed on your equipment at NO CHARGE FOR PARTS OR LABOR (EXCEPT FOR CGA 240)

        Connections
    Model* Valve Type Inlet Outlet

    4823-CGA 90° lever Specify CGA mating CGA

    TYPICAL LEAD-TIME 1-3 DAYS




SKU:
PA4823-CGA
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
