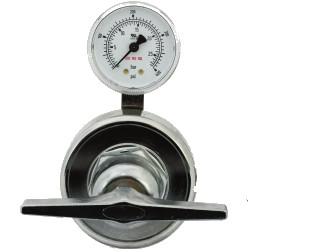

Cryogenic Chrome Plated Brass Regulator Model HL3300 0-350 PSIG

Hover over image to zoom

  • Image 1
USD $479.00

 Product Description



Add the CGA connection of your choice to the Order Instructions/Comments Section Box at Check out time. CGA Connections will be installed on your equipment at NO CHARGE FOR PARTS OR LABOR (EXCEPT FOR CGA 240) CGA Connections are also sold separately and maybe Purchased by going under the CGA Connection Category. All outlet fittings and Connections are also sold separately and maybe purchased by going under our Compression or Pipe Fittings Categories.

This chrome plated brass single stage regulator is ideal for controlling the gaseous withdrawal from cryogenic containers.

The regulator boasts a large stainless steel diaphragm for better control and a 0.37 Cv to provide high flow if required.


FEATURES
• Delivery pressure range 0-350 psig
• Maximum inlet pressure – 3000 psig
• One-piece encapsulated seat design with 10 micron filter to protect seat from particulate contamination
• Inlet is required CGA connection or 1/4” NPT female
• Outlet connection 1/4” NPT female
• Cv = 0.37

MATERIALS OF CONSTRUCTION
Body: Chrome plated brass forging
Bonnet: Chrome plated brass forging
Diaphragm: 302 stainless steel
Nozzle: brass
Seat & seals: PTFE Teflon
Filter: nickel plated sintered bronze
Seat return spring: PH 17-7 stainless steel

TYPICAL LEAD-TIME 7-14 DAYS





HOW TO ORDER

Model
Number
Del. Press. Range psig Del. Press. Gauge psig

HL3300-350 0-350 0-400



SKU:
REGHL3300-350
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
