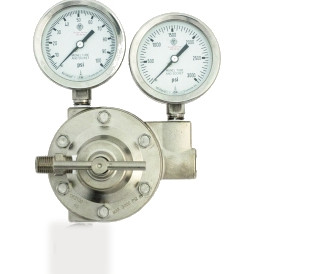

Corrosive Gas Single Stage Nickel-Plated Brass Pressure Regulator A3 Model 3471NV 5-80 PSIG NO VALVE

Hover over image to zoom

  • Image 1
USD $1,929.00

 Product Description

NO OUTLET VALVE



Add the CGA connection of your choice to the Order Instructions/Comments Section Box at Check out time. CGA Connections will be installed on your equipment at NO CHARGE FOR PARTS OR LABOR (EXCEPT FOR CGA'S 170CB, 180B, 240, 296B) CGA Connections are also sold separately and maybe Purchased by going under the CGA Connection Category. All outlet fittings and Connections are also sold separately and maybe purchased by going under our Compression or Pipe Fittings Categories.

The Series 3470 single stage regulators are specifically designed and constructed for use with difficult to handle gases, such as chlorine and hydrogen chloride. The large monel nozzle and Kel-F seat combined with the tied diaphragm assembly greatly reduces the possibility of failure due to creep so common in other corrosive gas regulators. A Teflon-lining on the stainless steel diaphragm forms a protective coating to extend regulator life. The electroless nickel-plated brass body is a major contributor to the economical nature of this regulator while providing corrosion protection.


FEATURES
• Four built-in Kel-F seats provide convenient maintenance and long regulator life.
• Large 316L stainless steel diaphragm.
• No outlet valve.
• Captured vent bonnet provides for save venting in the event of a diaphragm failure.

APPLICATIONS

The 3470 Series regulators are ideal for use with many corrosive gases, such as chlorine, hydrogen chloride, boron trichloride, and boron triflouride. They are also useful for controlling the pressure of high concentration gas mixtures containing these corrosive gas components.



MATERIALS OF CONSTRUCTION
Body: Electroless nickel-plated brass
Nozzle: monel
Seat: Kel-F®
Diaphragm: 316L Stainless Steel
Inlet Filter: Electroless nickel-plated sintered bronze
Seals: Viton

SPECIFICATIONS
Max. Inlet Pressure - 975 psig
Operating Temp. Range - 20° to +160°F
Body Inlet and Outlet - 1/4" NPT female

Outlet - 1/4" NPTF Female (NO OUTLET VALVE)

TYPICAL LEAD-TIME 7-14 DAYS















HOW TO ORDER

Model                 Del. Press. Range
Number*            psig 5-80
Del. Press
Gauge psig 0-100
Inlet Gauge
psig 0-1000



3471NV-80
Warning: A Purge assembly under (CATEGORY PURGE ASSEMBLIES)  is strongly suggested when using
the above regulators with any corrosive gas.




SKU:
REG3471NV-80
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
