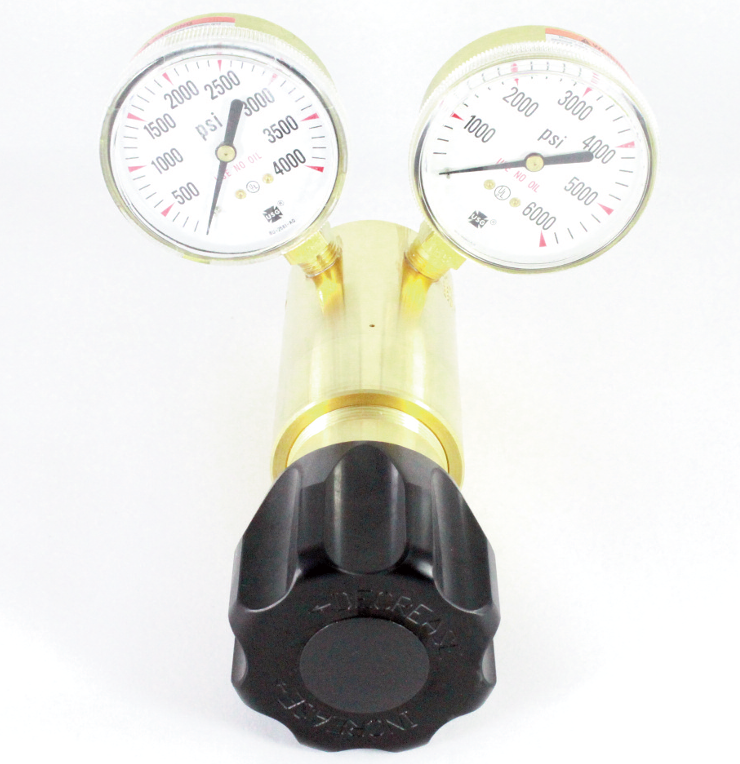

Brass Very High Pressure Self Venting Regulator A4 Model 3860TB 15-2500 PSIG

Hover over image to zoom

  • Image 1
Competitor's Price: USD $1,417.00
USD $1,165.00 (You save USD $252.00)

 Product Description

Warning: When adding a CGA connection to this regulator the Maximum Inlet pressure will only be 0-3000 psig. Select  the CGA connection of your choice to the Order Instructions/Comments Section Box at Check out time. CGA Connections will be installed on your equipment at NO CHARGE FOR PARTS OR LABOR (EXCEPT FOR CGA'S 170CB, 180B, 296B) CGA Connections are also sold separately and maybe Purchased by going under the CGA Connection Category.

DESCRIPTION
The Series 3860T high pressure regulators are designed to safely reduce inlet pressures from cylinders filled with gases to 6000 psig. The self-venting feature of the regulator allows the operator to reduce the pressure setting in a closed system by venting the downstream pressure through the regulator.

FEATURES
• Full 6000 psig delivery pressure capability.
• Available in brass or stainless steel.
• Self-venting design for ease of pressure adjustment.
• Unbalanced stem assures positive shut-off.
• Removable valve assembly module permits ease of repairs.
• Large adjusting knob provides fast low-torque pressure. settings.

SPECIFICATIONS
Maximum Inlet:
  brass 6000 psig Without CGA Connection
  WARNING ONLY  3000 psig Maxium pressure with CGA Connection
Operating Temperature: 40° to 165°F.
C v Factor: 0.06
Leakage: bubble-tight
Inlet and Outlet port: 1/4" NPT female
Weight: 5lbs.


MATERIALS OF CONSTRUCTION
Model  3860TB Self-Venting
Body: brass
Bonnet: brass
Main valve seat: Vespel
Vent valve seat: Kel-F®
Seals: Buna-N
Back-up rings: Buna-N and Teflon®
Gauges: brass


Prefix “NV” to model number is if self-venting feature is not desired (i.e. NV3860TB-6000) Self-venting feature is not recommended with flammable or toxic gases.

*Regulators fitted with a CGA connection rated for 3000 psig will have a 0-4000 psig brass inlet pressure gauge.

HOW TO ORDER

Model
Number
Del. Press. Range
psig
Del. Press. Gauge
psig
Inlet Press.
psig*Gauge

3860TB-2500 15-2500 0-4000 0-7500 Without CGA

TYPICAL LEAD-TIME 7-14 DAYS




SKU:
REG3860TB-2500
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
