A7 High Purity Semi-Auto Brass Changeover Manifold 0-100 PSIG W/Check Valves 36" SS Pigtails Model 914-1-100-FPB604-3-CV

Hover over image to zoom

  • Image 1
Competitor's Price: USD $1,623.00
USD $1,484.00 (You save USD $139.00)

 Product Description

Note: High Purity Semi-Auto Brass Changeover Manifolds have NO CGA Connections and are NOT included in the part number. Add the CGA connection of your choice to the Order Instructions/Comments Section Box at Check out time. CGA Connections will be installed on your equipment at NO CHARGE FOR PARTS OR LABOR (EXCEPT FOR CGA'S 170, 180, 240, 296) CGA Connections are also sold separately and maybe Purchased by going under the CGA Connection Category.

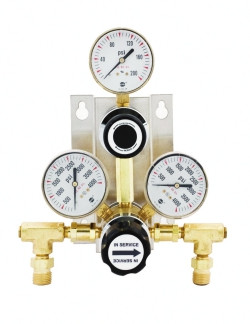

Note: Picture doesn't show pigtails or check valves. They are included in the P/N and price.

DESCRIPTION

The Series 914 semi-automatic changeover manifold is another solution for providing an uninterrupted supply of gas to your instrumentation or process. It incorporates a specially machined two-regulator in one body that simplifies changeover operation and reduces the wall space required. The feed and line regulators are of high purity construction with stainless diaphragms and diffusion resistant construction capable of passing a helium leak rate test of 1x10-9.

Available in both brass and 316SS construction, the 914 Series is provided complete with changeover regulator and line regulator installed on a mounting bracket for easy installation. Manifold sections are ordered separately.

The manifold is assembled using the 914 central control section shown on this page and two header manifolds or ss pigtail set to provide the supply banks. A simple two station semi-automatic manifold commonly used to ensure a continuous supply of carrier gas to a gas chromatograph employs a central control section with a pigtail installed on both inlets. Switchover Pressures vary between 100-300 psig on certain models.

With the (optional) 914-3B and 914-3BEX series pressure switches and the (optional) 914-AVA alarm this will notify the user that a changeover has taken place, the manifold needs to be set to switch the other way, and the empty cylinders should be changed. Pressure switch assemblies should be installed one switch on each side.



SPECIFICATIONS
Max. inlet pressure 3000 psig
Inlet and Outlet ports 1/4" NPT female
C v 0.08 standard (0.2 optional)**
Operating temperature -40° to -165°F
Weight 7.75 lbs.

HOW TO ORDER

Model Description

Brass Central Control Section
914-1-100-FPB604-3-CV line regulator delivery range 0-100 psig

With two 36" flexible all stainless steel braided pigtails with brass CGA'S and check valves.

TYPICAL LEAD-TIME 1-3 DAYS




SKU:
914-1-100-FPB604-3-CV
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
