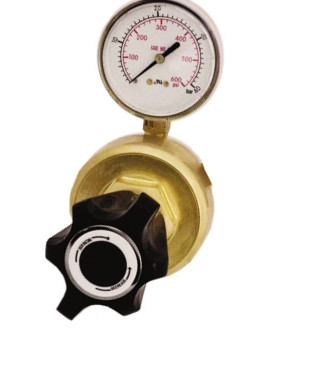

A4 Brass High Flow Cv 0.55 High Purity Line Pressure Regulator B5 Model 3831HL 0-250 PSIG

Hover over image to zoom

  • Image 1
Competitor's Price: USD $980.00
USD $765.00 (You save USD $215.00)

 Product Description



DESCRIPTION

This regulator is for high flow and high purity gases.The have a C v of 0.55 and excellent regulation.

FEATURES
• Capable of high flows with only a small pressure drop.
• High purity metal diaphragm construction.
• All parts ultrasonically cleaned prior to assembly.
• Excellent pressure regulation - 1.6psi/100psi.
• Encapsulated seat with 10 micron filter.

APPLICATIONS
The 3831H series regulators are ideal as manifold, laser assist gas, or pipeline regulators for high flow systems or high purity or industrial gases.

SPECIFICATIONS
Model  3831HL-250
Max. Inlet Pressure: 3000 psig*
Operating Temp. Range: -40°F to 165°
Flow Coefficient (C v): .55
Inlet and Outlet: 1/2" NPT female




Model
Del. Press
psig
Del. Press. Gauge
psig
Inlet Press. Gauge
psig

3831HL-250 0-250 0-400 NONE

MATERIALS OF CONSTRUCTION

Model  3831HL-250
Body: brass barstock
Bonnet: forged brass
Diaphragm: 302 SS**
Seat: PTFE Teflon
Seals: PTFE Teflon
Nozzle: brass









*500 psig on the 0-15 psig models.
** 0-15 psig models have a neoprene diaphragm and seat.


TYPICAL LEAD-TIME 7-14 DAYS
