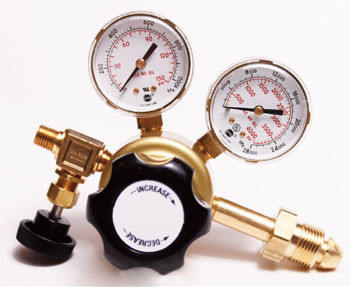

A4 Brass General Purpose Non-Corrosive Gas Single Stage Regulator 0-250 PSIG

Hover over image to zoom

  • Image 1
Competitor's Price: USD $338.00
USD $314.00 (You save USD $24.00)

 Product Description

Add the CGA connection of your choice to the Order Instructions/Comments Section Box at Check out time. CGA Connections will be installed on your equipment at NO CHARGE FOR PARTS OR LABOR (EXCEPT FOR CGA'S 170CB, 180B, 296B) CGA Connections are also sold separately and maybe Purchased by going under the CGA Connection Category. All outlet fittings and Connections are also sold separately and maybe purchased by going under our Compression or Pipe Fittings Categories.

DESCRIPTION

The Series 2400 single stage regulators are specifically designed as an economical instrument for use in non-critical applications involving inert and non-corrosive gases. They are particularly suited to applications which will not be closely monitored and a constant delivery pressure is required from full to empty cylinder. The neoprene diaphragm provides very sensitive pressure control. The Series 2400 should not be used in applications where inboard diffusion of atmospheric impurities water and oxygen or the outgassing of hydrocarbon based impurities will negatively impact the work being performed.


FEATURES
• Neoprene diaphragm for sensitive pressure control.
• Needle valve installed in outlet.
• One piece encapsulated seats.

APPLICATIONS
The Series 2400 regulators are ideal for use with inert,
flammable, and hydrocarbon gases used in non-critical specialty gas applications.

MATERIALS OF CONSTRUCTION
Body: brass
Nozzle: brass
Seat: PTFE Teflon
Diaphragm: neoprene
Inlet Filter: nickel plated sintered bronze - 10 micron


SPECIFICATIONS

Max. Inlet Pressure: 3000 psig
Operating Temp. Range: 0° to +140° F
Body Inlet and Outlet: 1/4" NPT female
Valve outlet : 1/4" NPT male
Flow coefficient: C v = 0.17

HOW TO ORDER

Model
Number
Del. Press. Range
psig
Del. Press. Gauge
psig
Inlet Press. Gauge
psig

2401-250 0-250 0-400 0-4000

TYPICAL LEAD-TIME 5-7 DAYS

SKU:
REG2401-250
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
